Custom Wooden Box Dimensions: How to Specify Product Fit
Avoid box fit problems by defining inside clearance, outside limits, inserts and measurement points before sampling.
Specify wooden box fit from the maximum packed contents, required internal clearance and any external size limits. Include sleeves, cards and accessories. Mark measurement points on the finished lined box, then confirm fit and removal with actual products before approving the outside dimensions.
Measure the object as it will ship
Include any protective bag, label, cable, booklet or accessory that goes into the box. Record the maximum length, width and height of the packed object, not just a marketing specification. If dimensions vary across production units, identify the largest acceptable object. For fragile surfaces, decide whether the product may touch the wood or requires an insert.
Separate internal and external limits

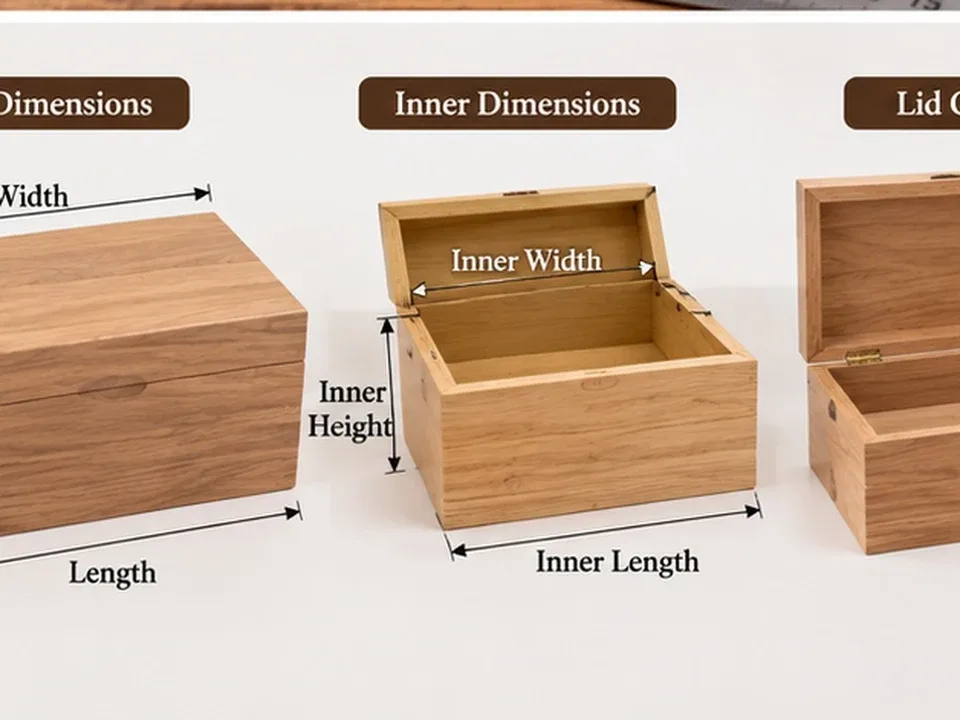

The internal space controls fit; the outside size may control retail shelf space, shipping cartons or a brand’s packaging system. State which measurement is fixed and where the supplier may adjust the design. Mark the direction in which the product is inserted and where fingers need room to remove it. For a multi-item set, draw the layout at scale and list the count of each item.
Approve measurement points
Ask the supplier to show the finished box’s measurement points in a drawing: inside at the base, at the lid opening and across any narrow opening. A tapered wall or thick lining can change clearance. Agree tolerances for the truly critical dimensions rather than applying an arbitrary number to every feature.

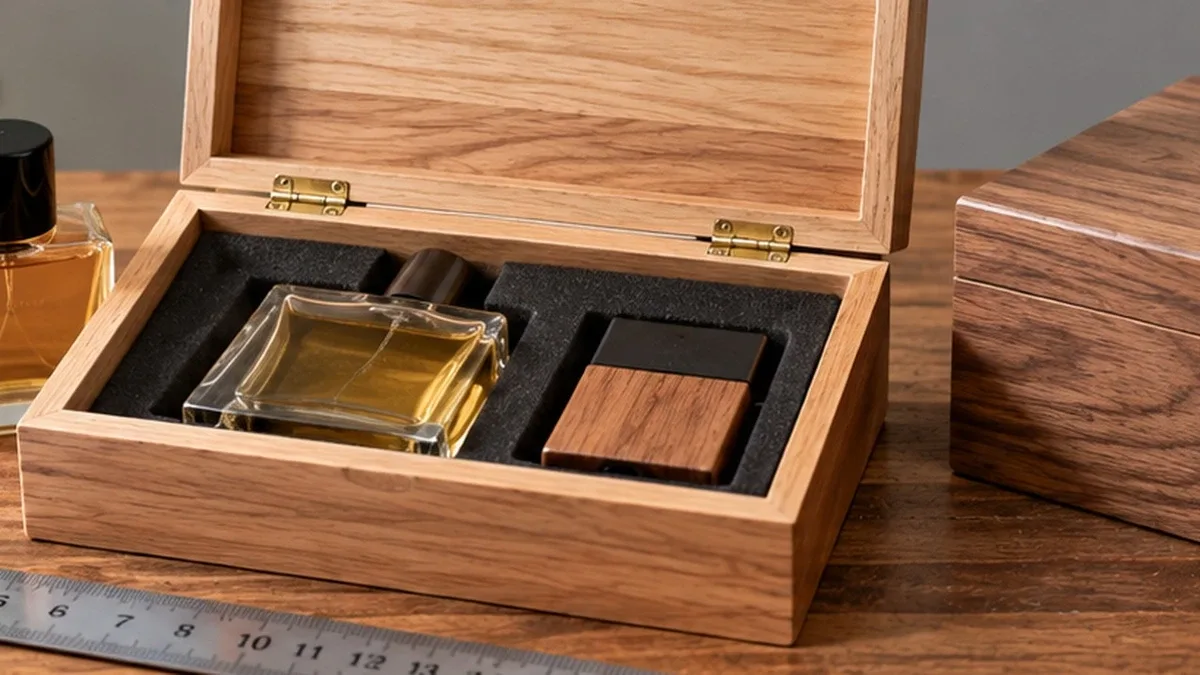

Test the filled sample and packing
Place the real product inside and close the box. Check for pressure points, movement when tilted and an easy removal path. Then place the filled box in its individual pack and master carton. A size change that solves fit may change carton capacity and freight volume.
Details to settle before requesting a quote
| Buyer decision | Information to provide |
|---|---|
| Contents | Maximum dimensions including protective bags and accessories. |

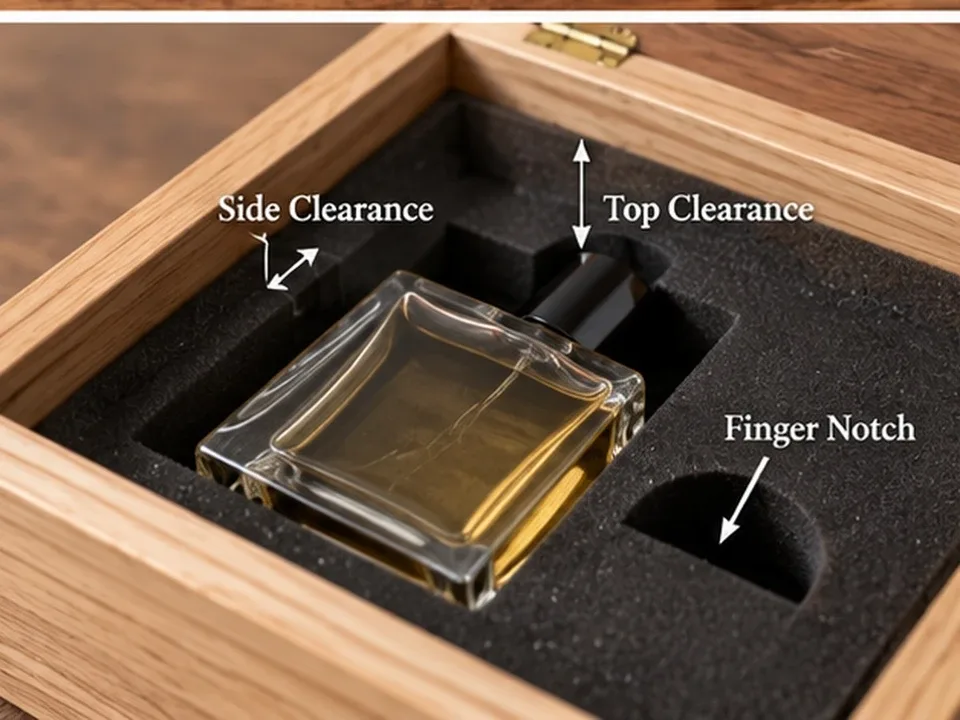

| Clearance | Insert, lining, finger access and lid opening. |
| Constraints | Fixed external limits and finished internal measurement points. |
Which size matters most: inside or outside?
Both can be critical for different reasons. Inside dimensions control contents fit; outside dimensions control shelves, retail sleeves and master cartons. Identify the fixed constraints first so the supplier knows where construction can be adjusted.
Discuss your specification with Woodencraftfactory
Start with the three decisions above: contents, clearance, constraints. Include your reference image or drawing, quantity by variant and destination. Mark unresolved details as “please advise” so the inquiry can identify the decisions still needed.
